Designed for High-Volume Factory and Process Automation Applications

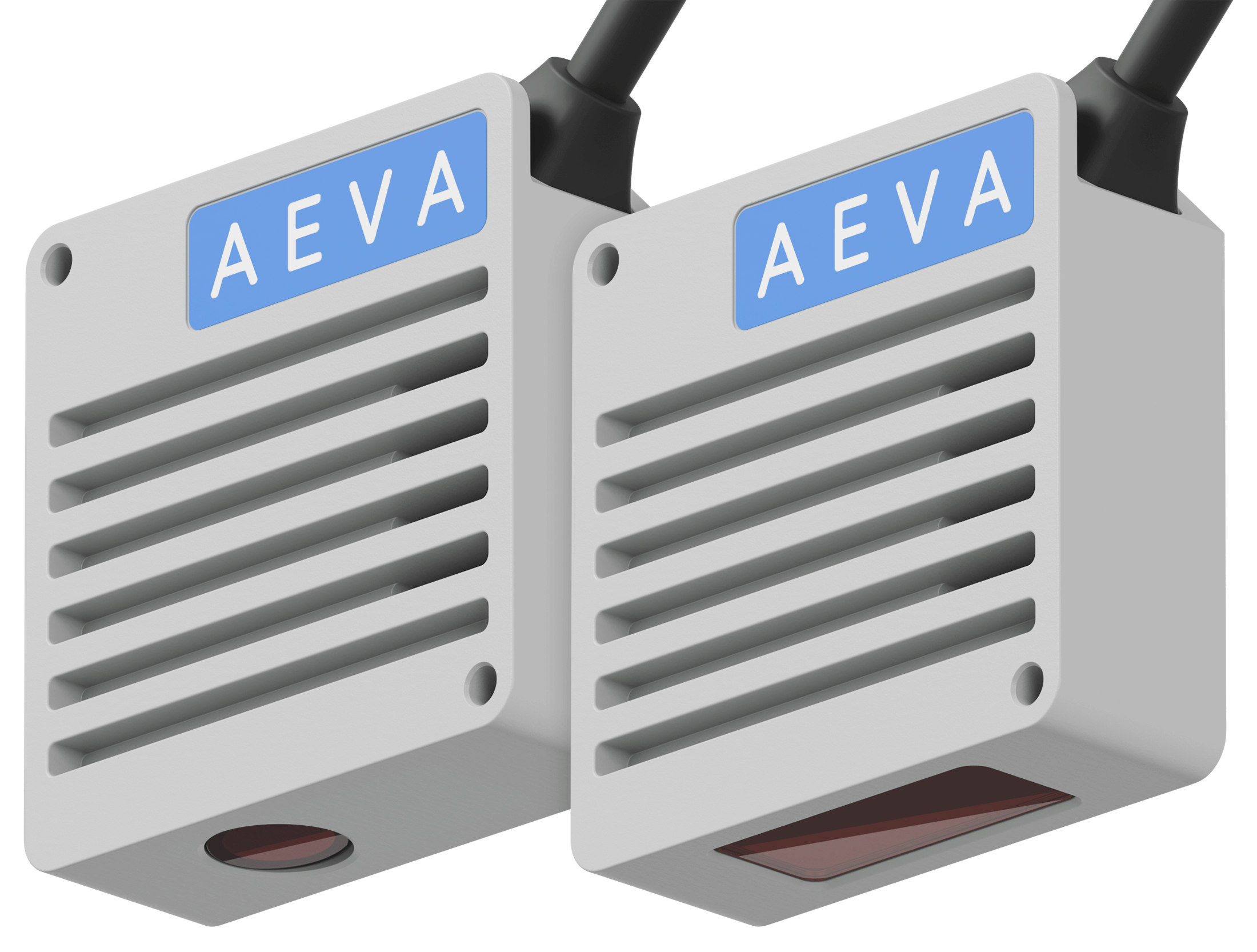

The Eve 1 line of FMCW laser measurement sensors specialize in high-precision measuring tasks for a wide range of in-line manufacturing and quality control applications. They outperform state-of-the-art displacement sensors by eliminating surface measurement sensitivity and delivering repeatable precision performance, all while reducing downtime with no calibration needed.

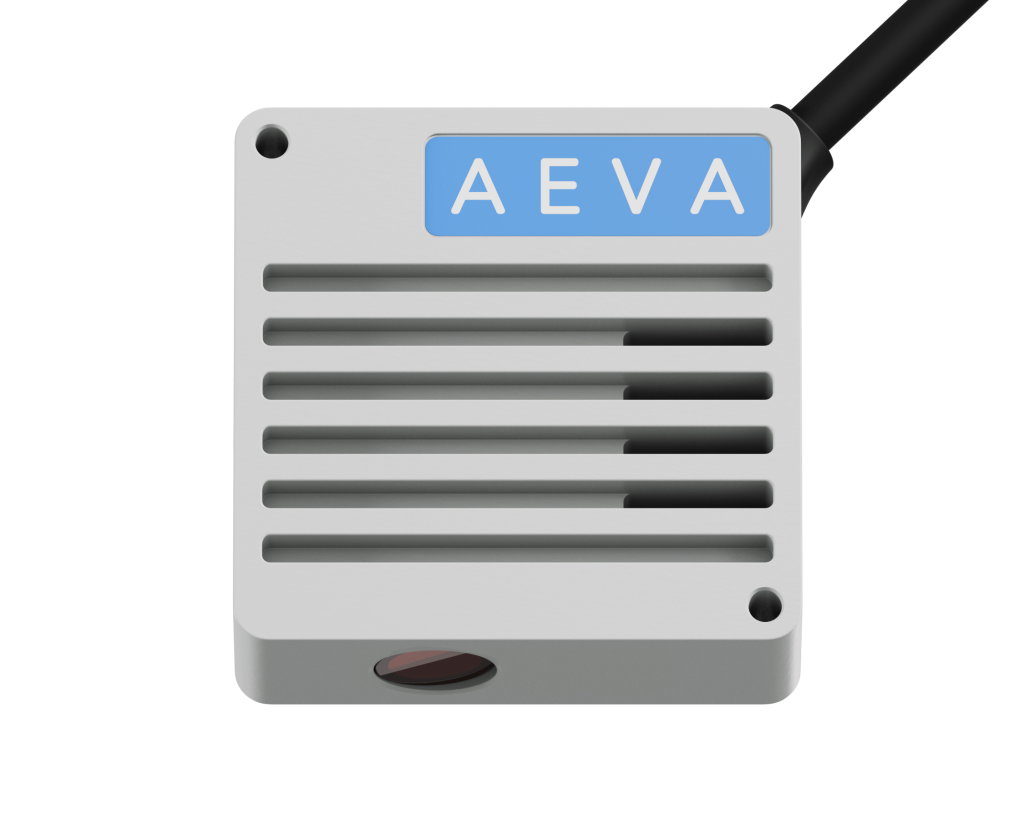

Aeva Eve™ 1D
Eve 1D is a high-precision, non-contact displacement sensor that measures the thickness, height, or position of components, monitors the velocity or vibration of moving parts, and checks for flatness or warping in manufacturing. Eve 1D eliminates surface measurement sensitivity and delivers repeatable precision performance, all while reducing downtime with no calibration needed.
Key Features
Key Performance Highlights
Sub-Micron
Range Precision
0.01% Linearity
High Accuracy Rate
100mm to 20m
Wide Standoff Range
High Speed Measurement
High Data Rate
Ultra-High Dynamic Range
Works Across Materials
Ambient Light Immunity
Works Across All Lighting Environments
Single Box Design
Integrated Measurement and Processing

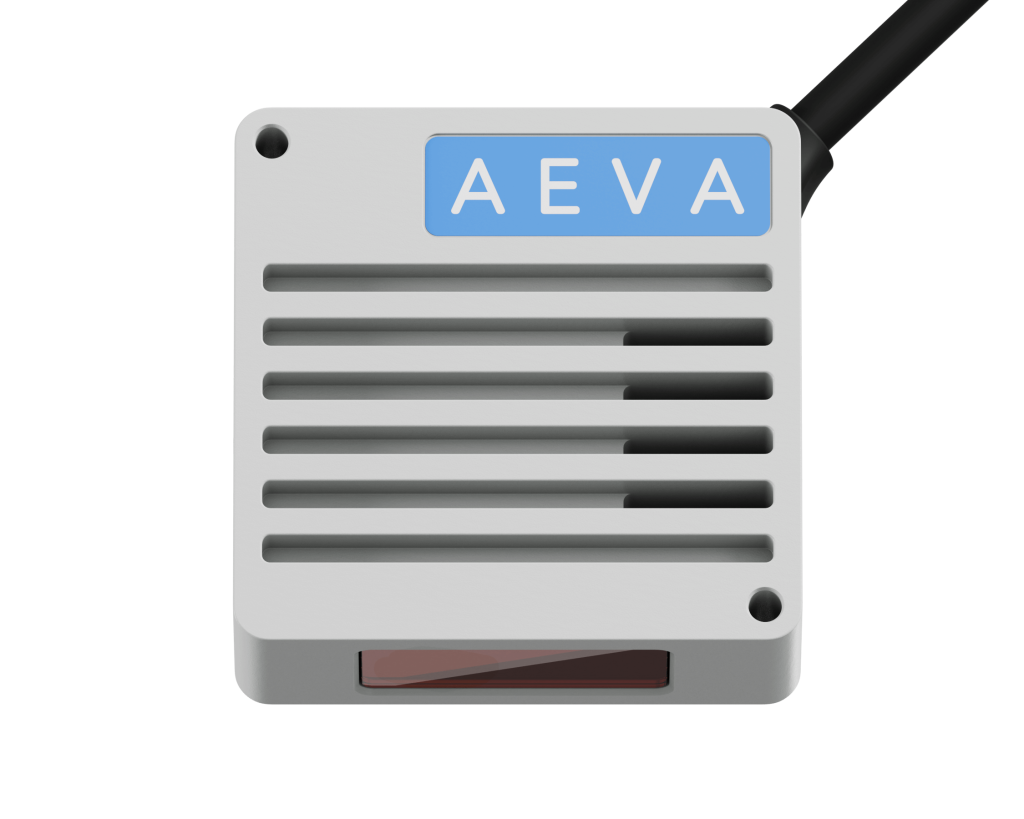

Aeva Eve™ 1V
Eve 1V is a high-precision, non-contact speed sensor that redefines industrial speed, length, and position measurement for a wide variety of applications, such as packaging, printing, and extrusion lines. It is especially well-suited for use cases where a mechanical encoder is not feasible. Eve 1V delivers unmatched accuracy, repeatability, and reliability without ever touching the material.
Key Features
Key Performance Highlights
Sub-Millimeter Per Second
Precision and Accuracy
200-300 mm
Flexible Standoff Distance
High Speed Measurement
High Data Rate
Ultra-High Dynamic Range
Works Across Materials
Ambient Light Immunity
Works Across All Lighting Environments
Single Box Design
Integrated Measurement and Processing
Powered by Aeva Custom Silicon
Aeva CoreVision™ Lidar-on-Chip Technology
Breakthrough FMCW Sensing Technology
Frequency Modulated Continuous Wave (FMCW) sensing detects distance and speed simultaneously by continuously emitting a laser beam and analyzing frequency shift due to the Doppler Effect.
Integrated Silicon Photonics Module
Leveraging experience in automotive, the module integrates key sensor elements on silicon including transmitter, detector and optical processing using silicon photonics.
Proprietary Precision Software
Aeva’s custom software algorithms enable robust, ultra-high precision distance and vibration measurement at a best-in-class data rate.
